Kit de motorisation de vélo
€205.01
CSC Electric bicycle kit 36V 250W 350W 500W Electric bike Conversion Kit 48V 1000W 1500W ebike conversion kit MTX Wheel motor
Free worldwide shipping on all orders over $499.00
- Free Shipping Worldwide
- Safety Payment
- Easy 7 Days Returns
Payment support :
Description
Description

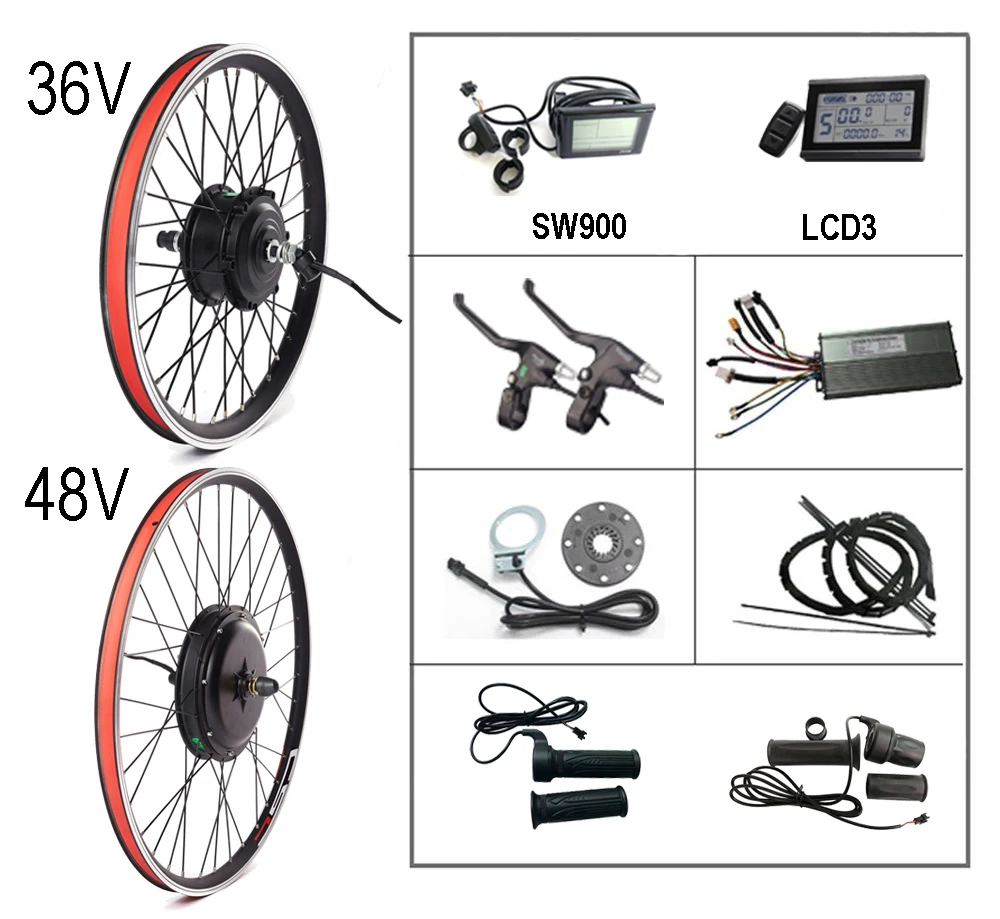

Packing List
If you choose CSC rim kit
Noted:Conversion Kit not include Battery, tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee )
If you choose CSC rim kit
1 * Rear motor wheel
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display sw900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Twist Throttle)

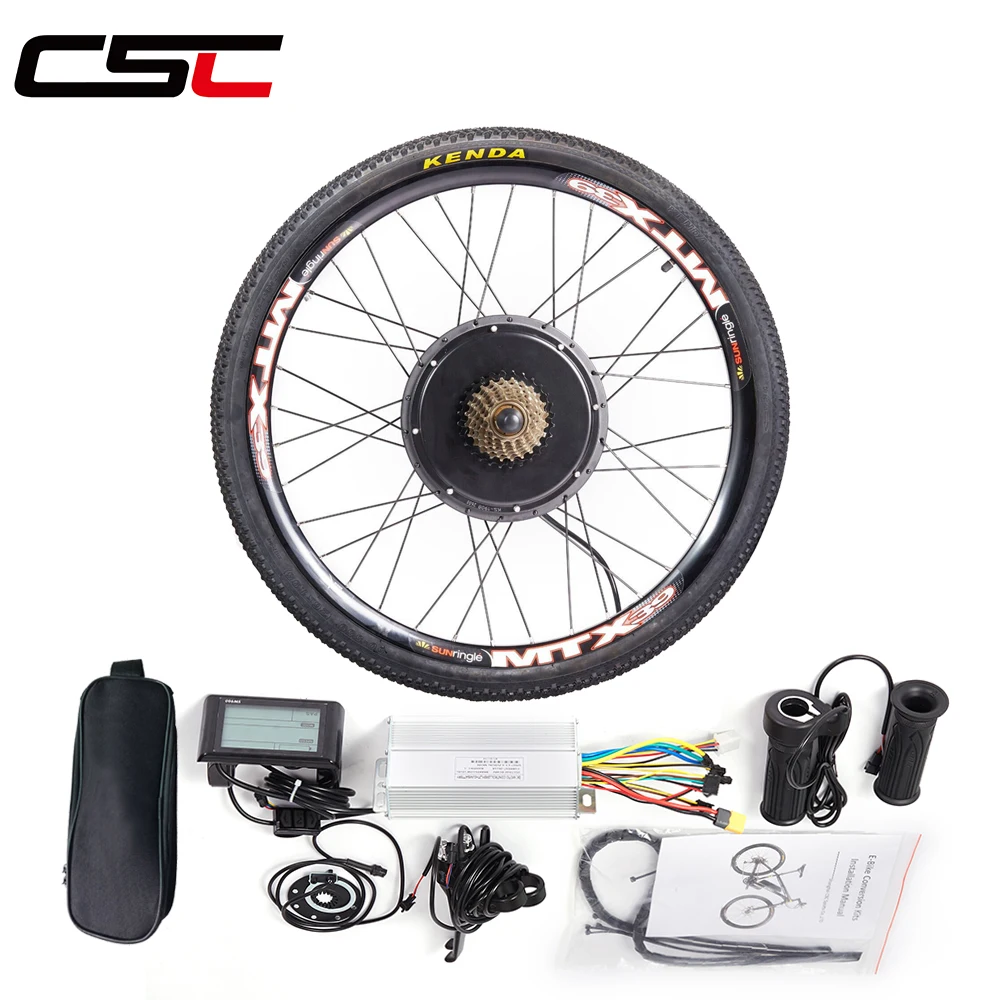

If you choose MTX rim kit
Noted:Conversion Kit not include Battery, ( If you need a Battery, Please contact us for an additional fee )
1 * Rear Motor wheel（26/27.5/29inch ）
1 * Tire
1 * 7 speed Freewheel
1 * 160mm Disc brake Rotor
1 * DC Controller
1 * Controller Bag
1 pair * Wuxing Power cut-off Brake lever
1 * Display SW900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Twist Throttle

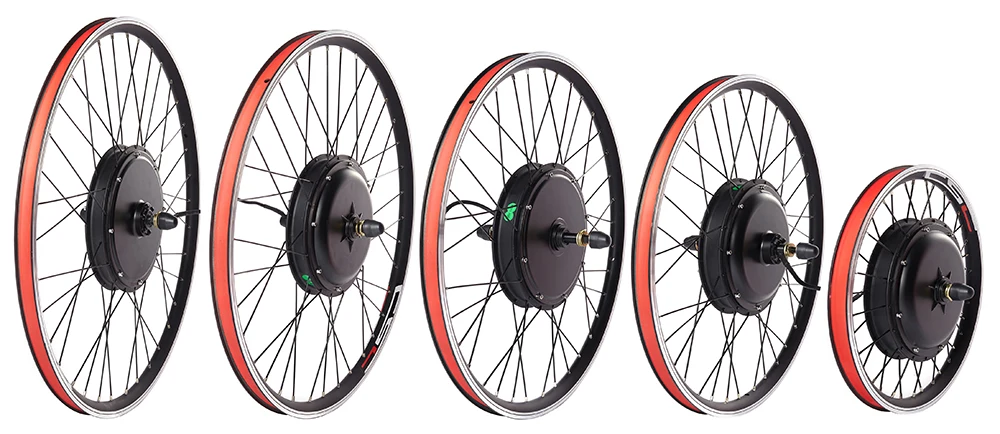

Motor Wheel
1. Full Speed: 36V 250/350/500W about 20-35km/hour,
48V 500W about 45-50km/h,
48V 750W about 50-60km/h,
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider’s weight will have different speed)
2. Hub Motor:
Brushless gear Hub Motor for 36V 250W 350W 500W ,48V 500W 750W
Brushless Non-gear Hub Motor for 48V 1000W 1500W

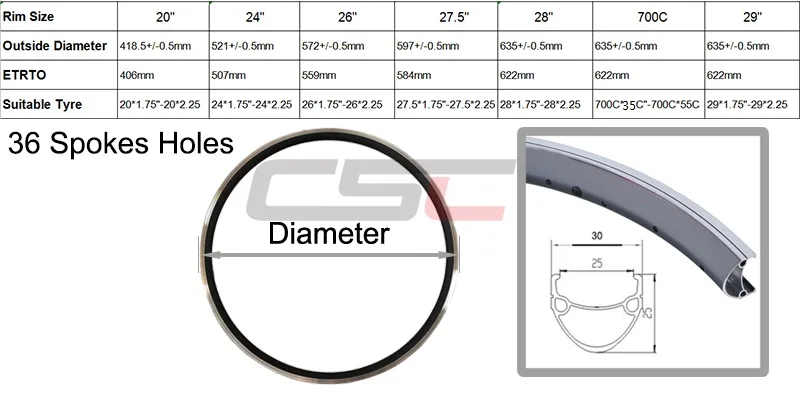

3. Rim: Double-wall Aluminium Alloy Rim
CSC rim ,inner width 25mm
24 26 27.5 inchs is SUN ringle MTX39, inner width 30mm
28 29 inchs 700C is SUN ringle MTX33, inner width 26mm

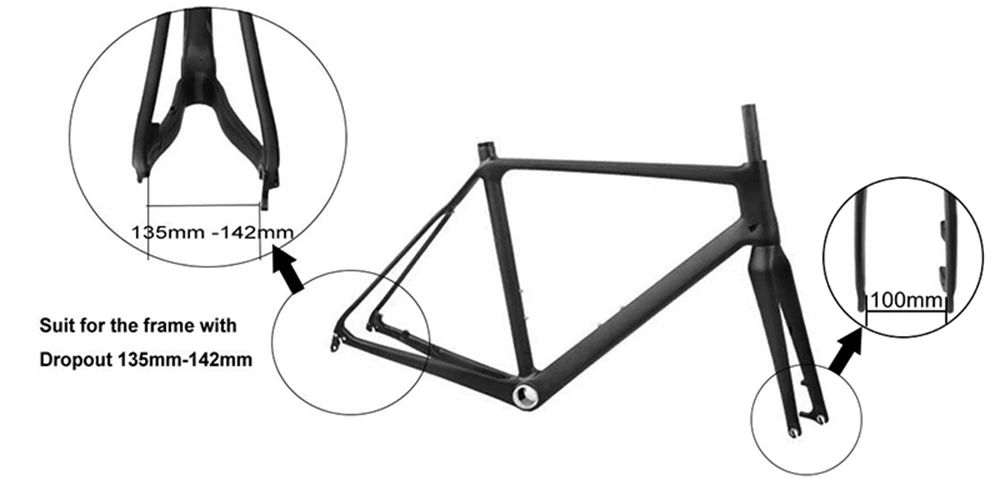

4. Wheel Bottom bracket: Rear 135mm-142mm
5. Torque:25-35NM for 36v 250W 350W 500W
30-35NM for 48V 500W ,
35-40NM for 48V 750W
30-40NM for 500W 1000W
35-45NM for 1500W
6. RPM:320 for 36V 250W 350w
350 for 36V 500W
425RPM for 48V 500W
450RPM for 48V 750W
470 for 48V 500W 1000W
540 for 48V 1500W

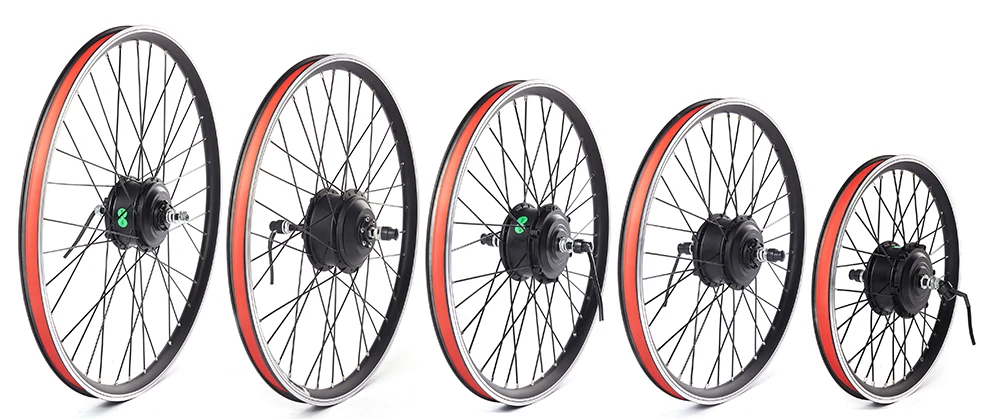

36V 250W 350W 500W 48V 500W 750W Motor CSC Rim
48V 1000W 1500W Motor CSC Rim

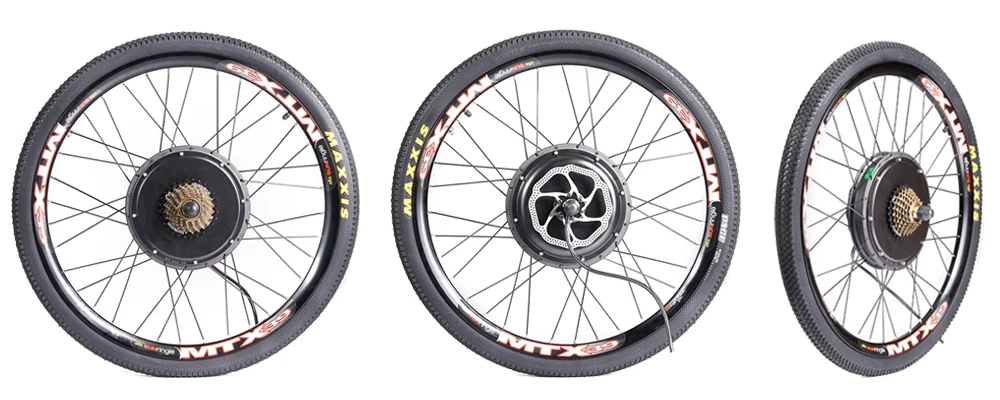

48V Motor MTX rim
Display

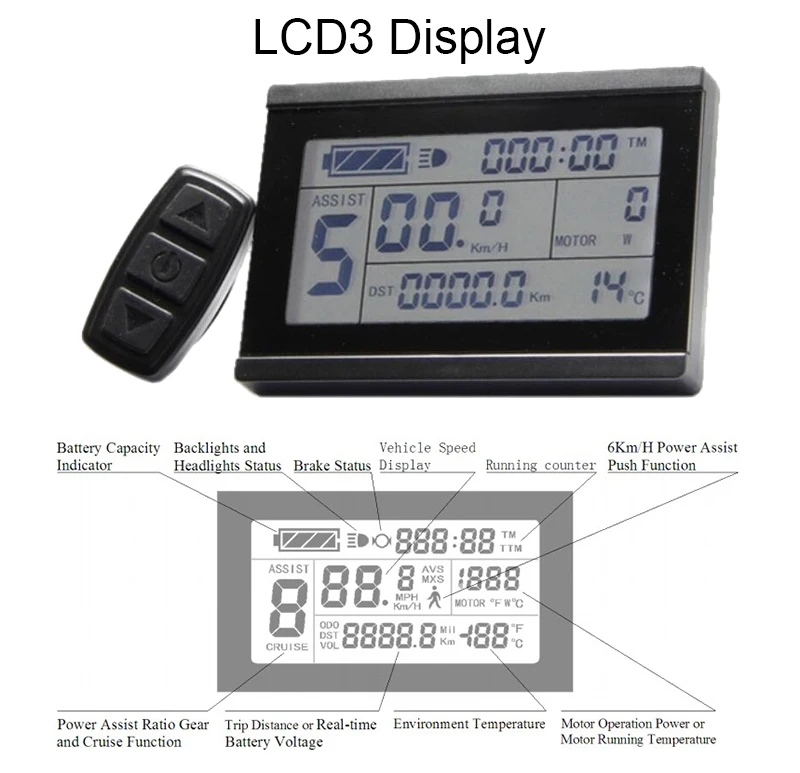

LCD3 display Product Features
Display Function:
it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling parameters;
Control/Setting Function:
comes with Brake Regeneration Anti-Charge ,Data display，Intelligent power，Stalls setting， Parameter setting，Data view， Vehicle boosting，Cruise and constant speed，Night driving，Password setting，Automatically prompt，
Display

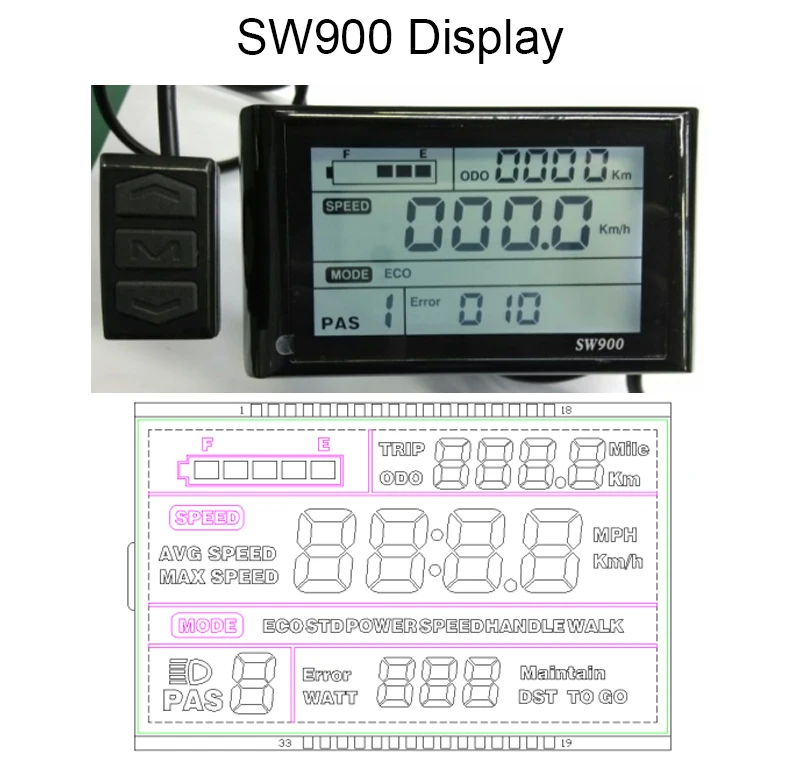

SW900 display Product Features
Display Function:
Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.
(2) Control/Setting Function:
Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

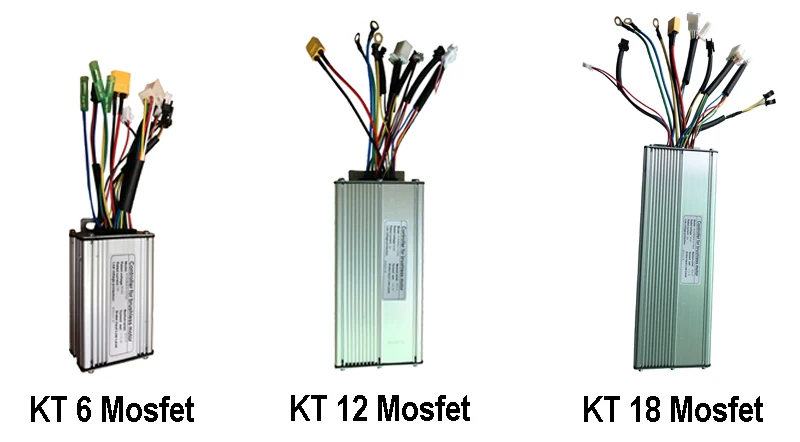

Controller
KT 6 mosfet controller
Fit for: 36V 250W/350W/500W motor wheel ，LCD3 Display
Rated current: 10A ,Max current: 20±1A
Size: 100*61*35mm
KT 12 mosfet controller
Fit for: 48V 1000W motor wheel，LCD3 Display
Rated current: 15A , Max current: 30±1A
Size: 176*82*41mm
KT 18 mosfet controller
Fit for: 48V 1500W motor wheel ，LCD3 Display
Rated current: 22A , Max current: 45±1A
Size: 240*82*41mm
Controller
CSC 6 mosfet controller
Fit for: 36V 250W/350W/500W motor wheel ，SW900 Display
Rated current: 15A ,Max current: 30±1A
Size: 100*64*32mm
CSC 12 mosfet controller
Fit for: 48V 1000W motor wheel，SW900 Display
Rated current: 22A , Max current: 44±1A
Size: 149*83.3*42mm
CSC 15 mosfet controller
Fit for: 48V 1500W motor wheel ，SW900 Display
Rated current: 35A , Max current: 70±1A
Size: 181.2*82.33*41mm

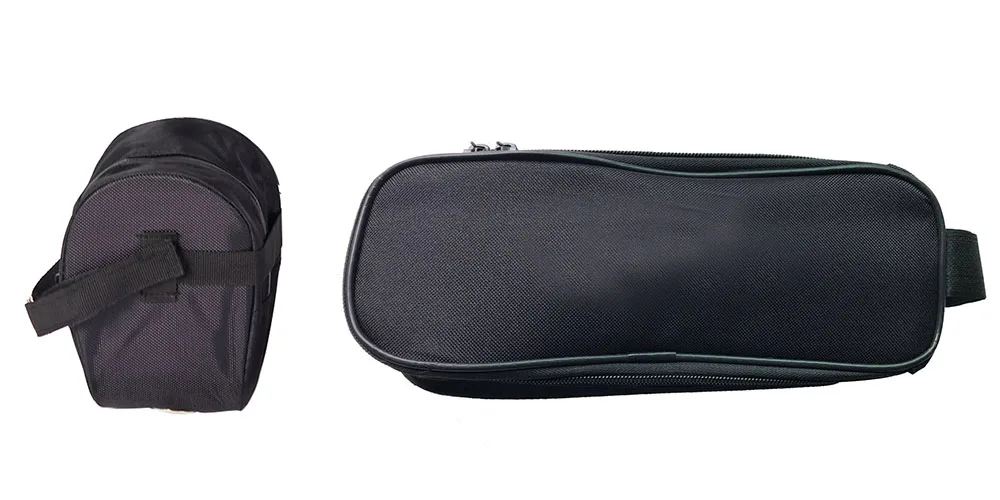

Controller Bag

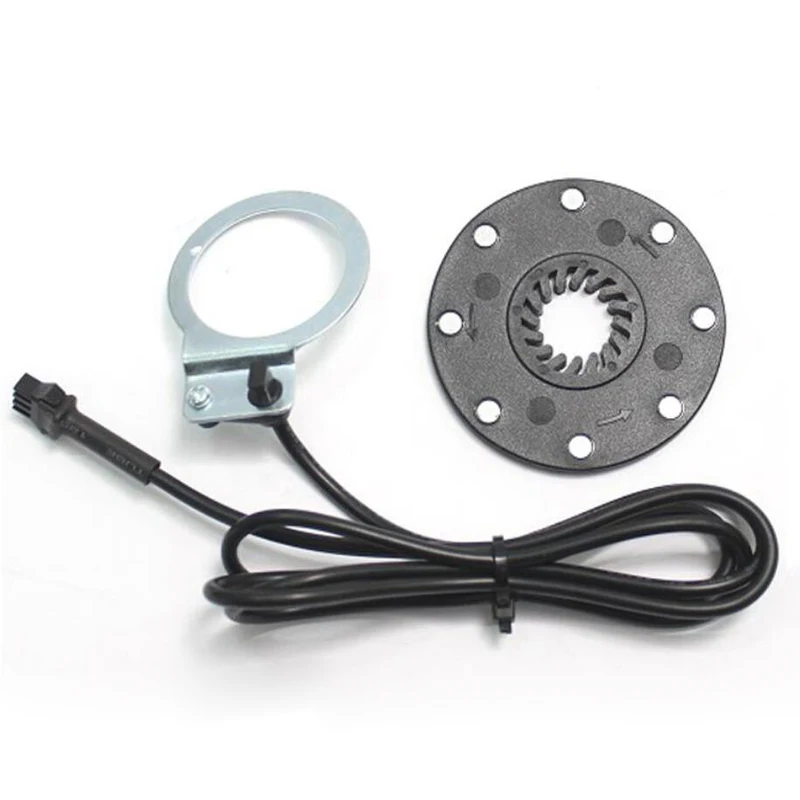

PAS
KT BZ-4(8) Magnet
Throttle
LCD3 display uses half Twist Throttle
SW900 display uses Twist Throttle

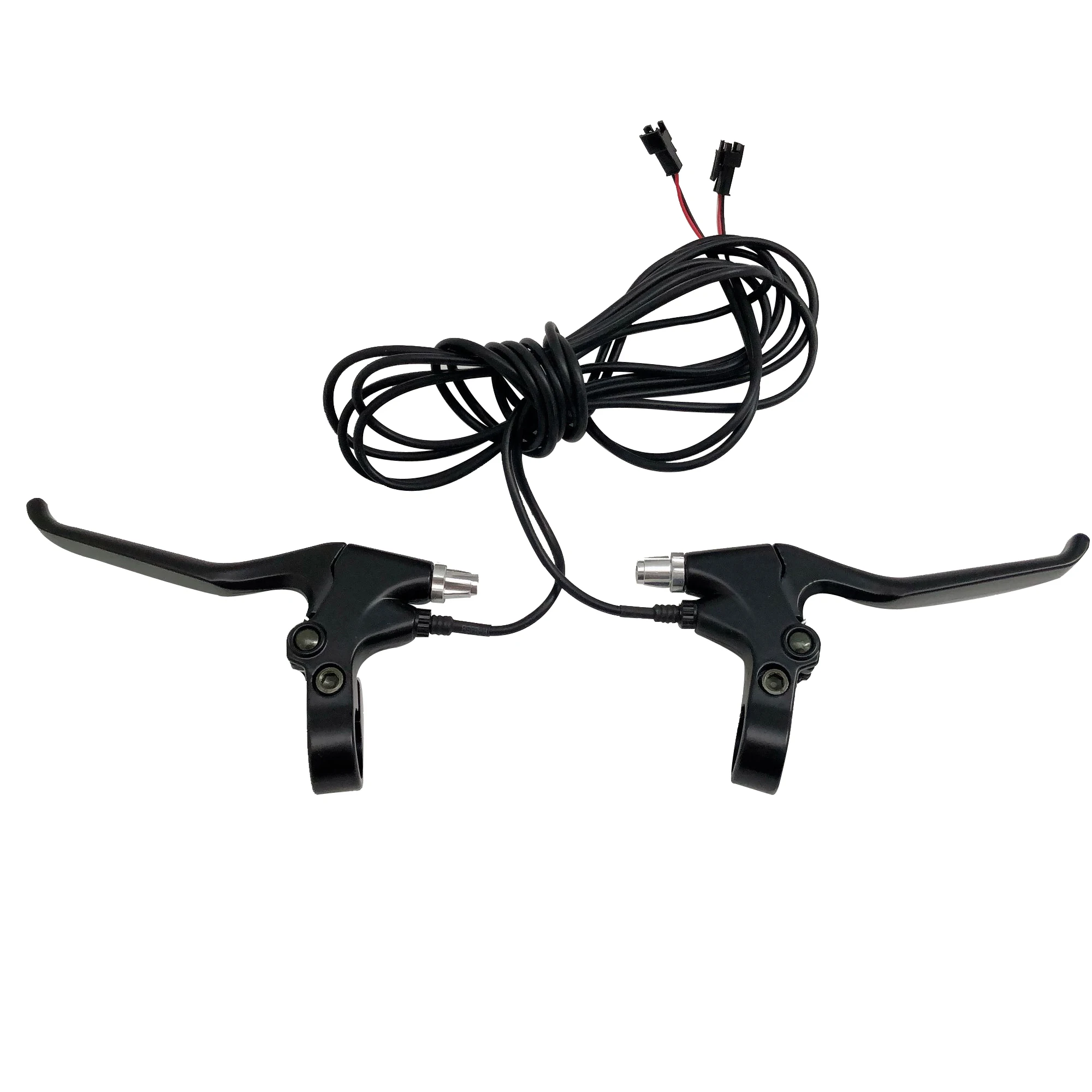

Power cut-off brake leaver
LCD3 display uses half Twist Throttle
SW900 display uses Twist Throttle
Shipping & Warranty
Tracking number is also available for Seller’s shipping method.
1. ) Price includes all taxes
2. ) If you have any question after you receive the items, please contact us first. Your satisfaction is our top priority and we are confident that you will be pleased with our services.
